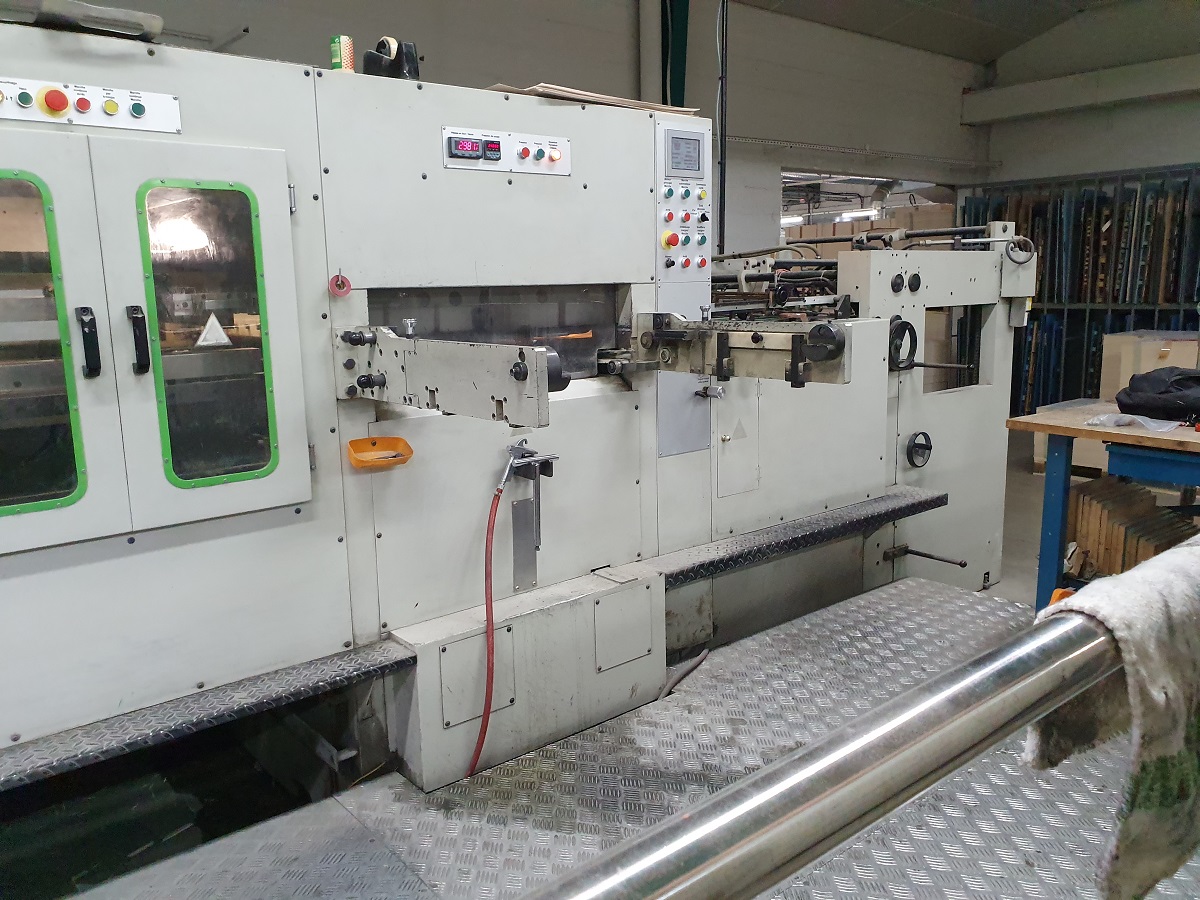

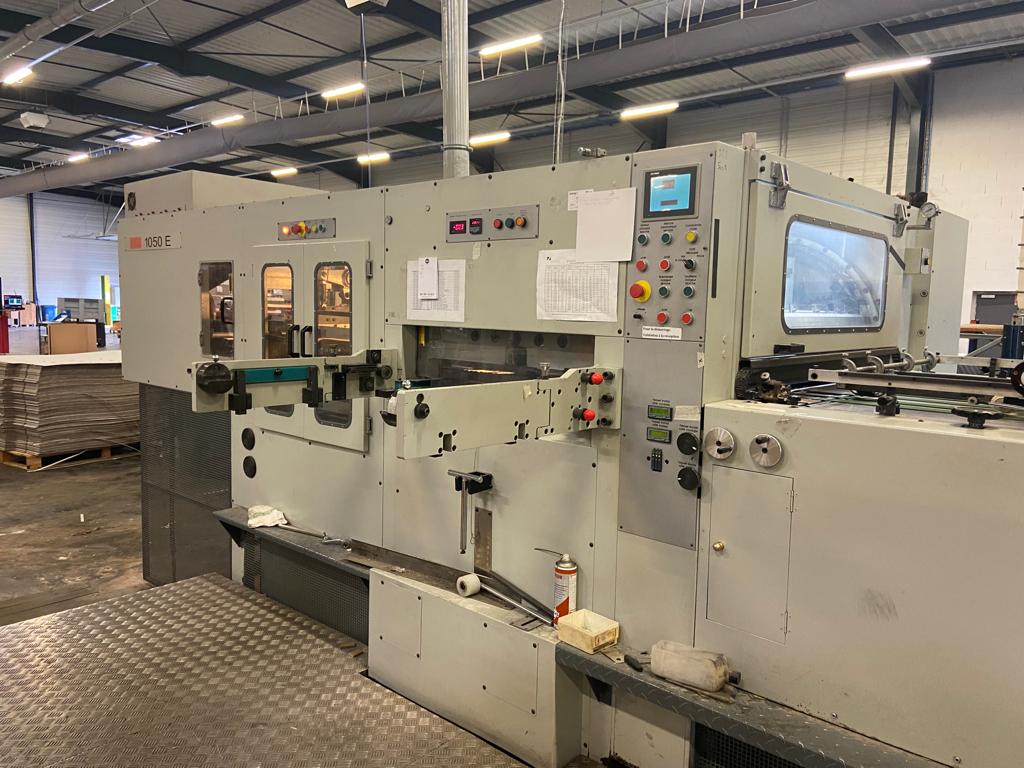

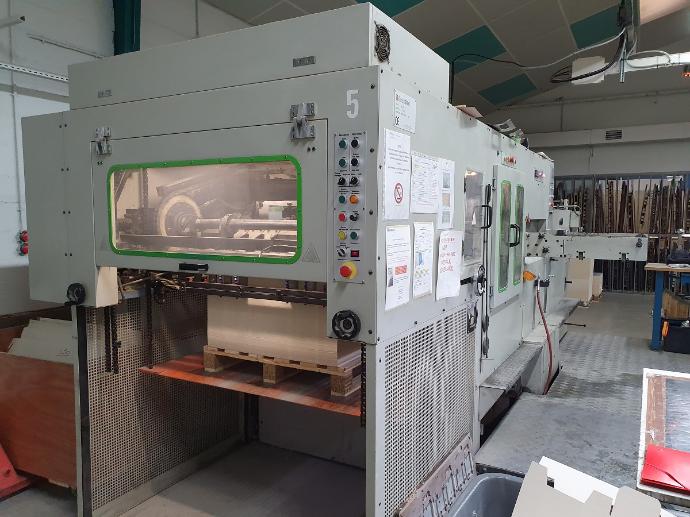

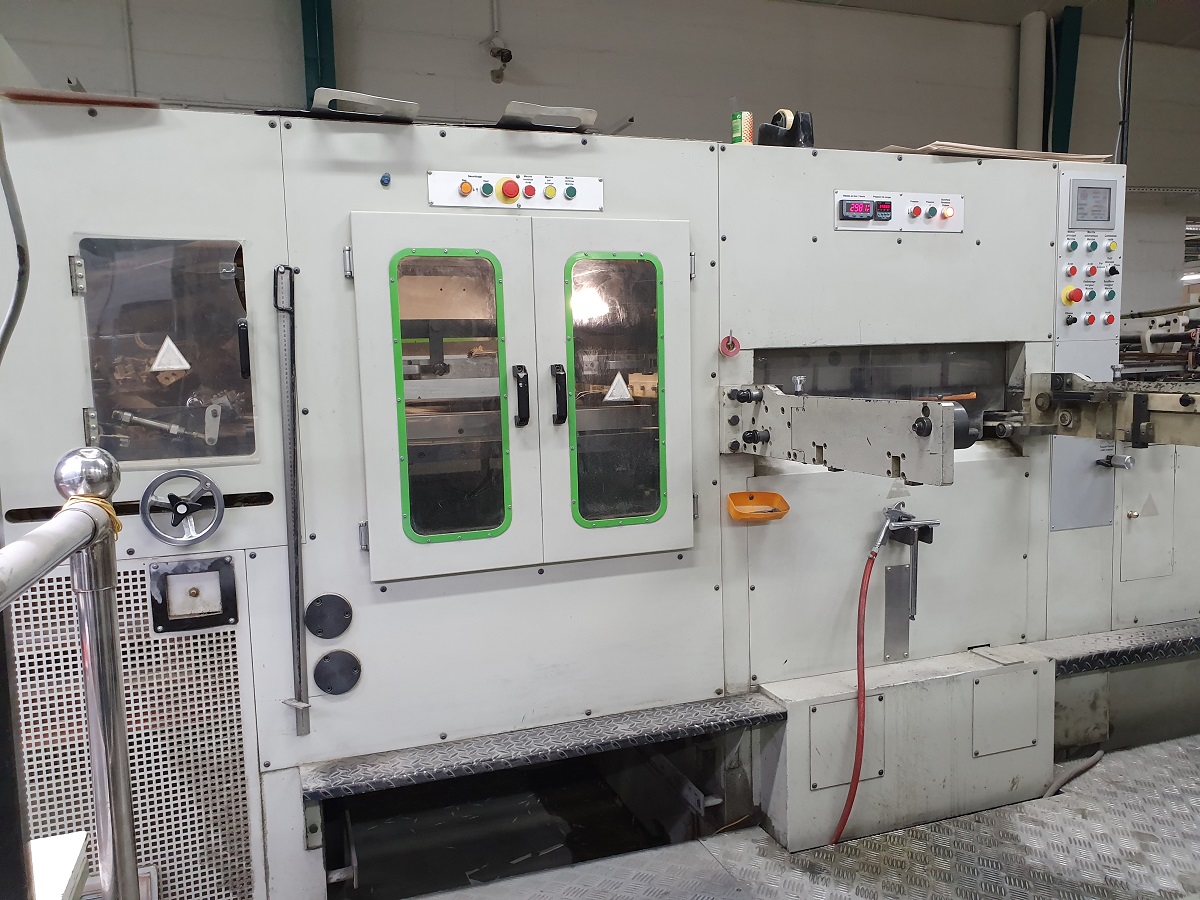

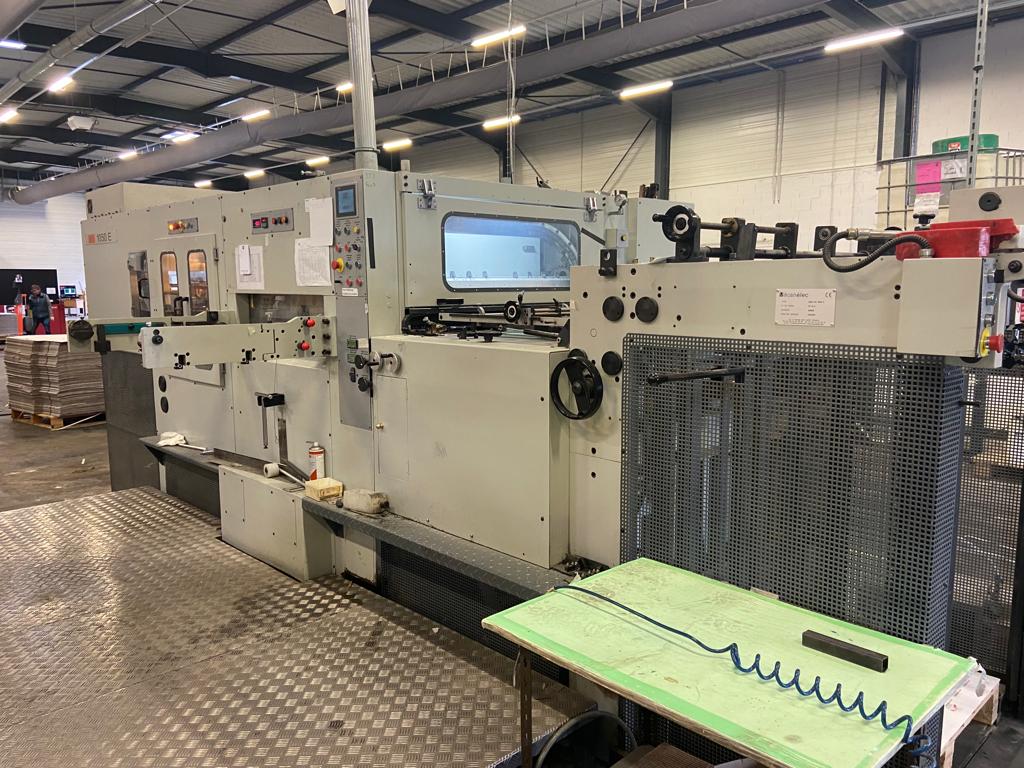

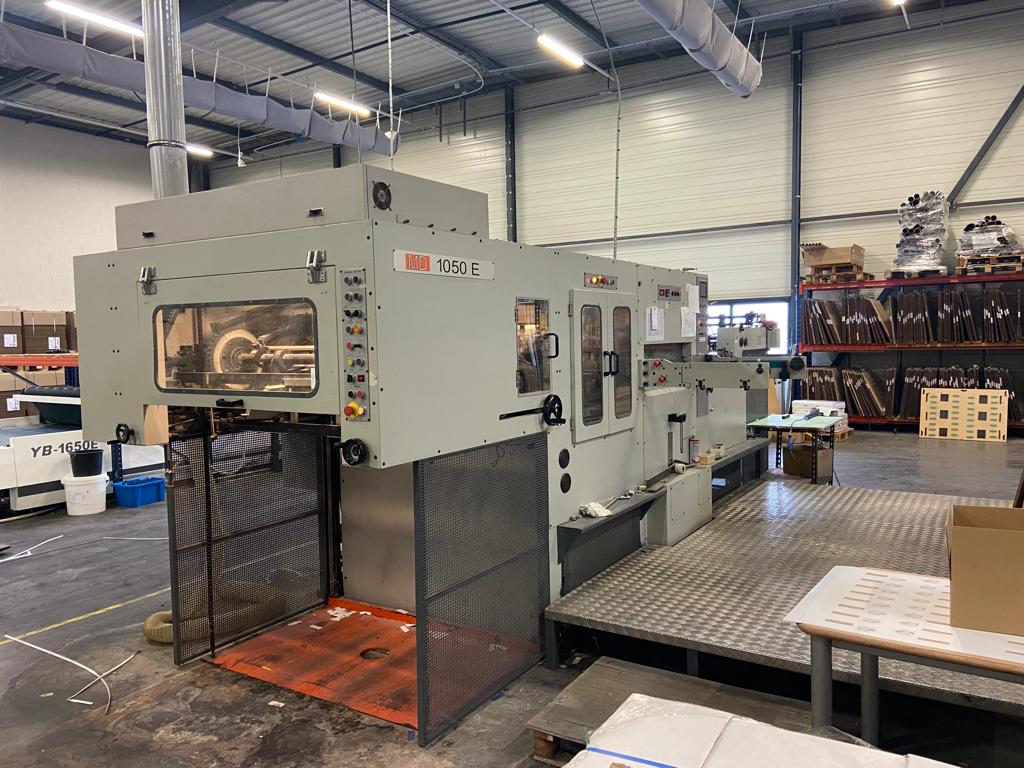

Presse de découpe automatique

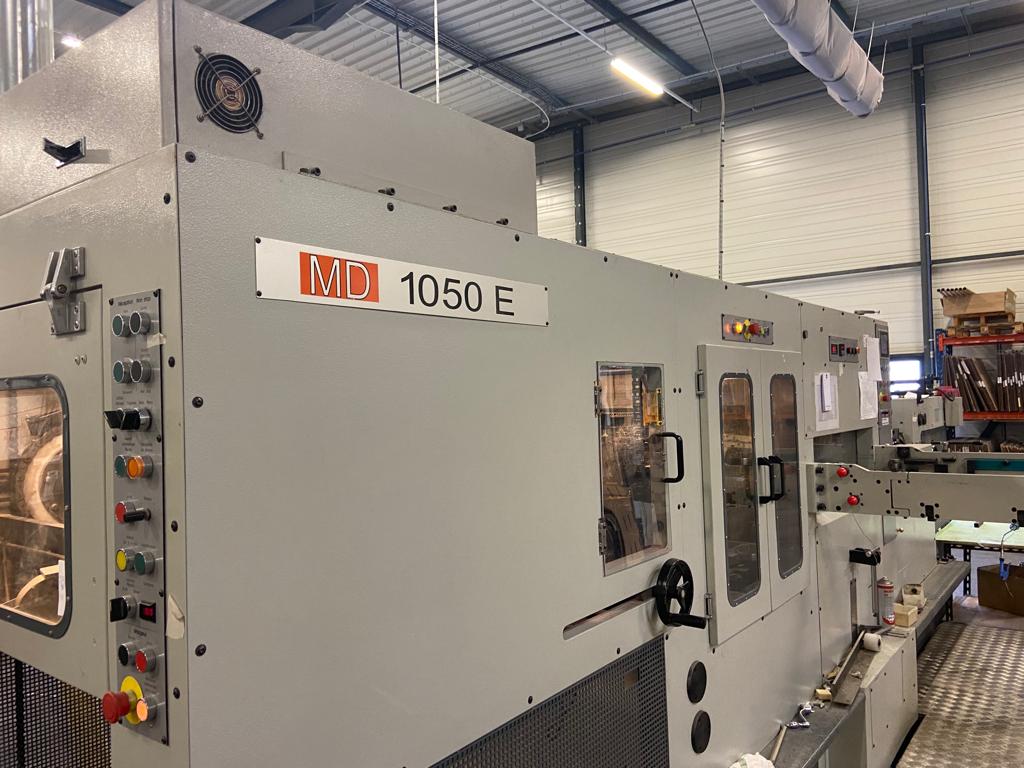

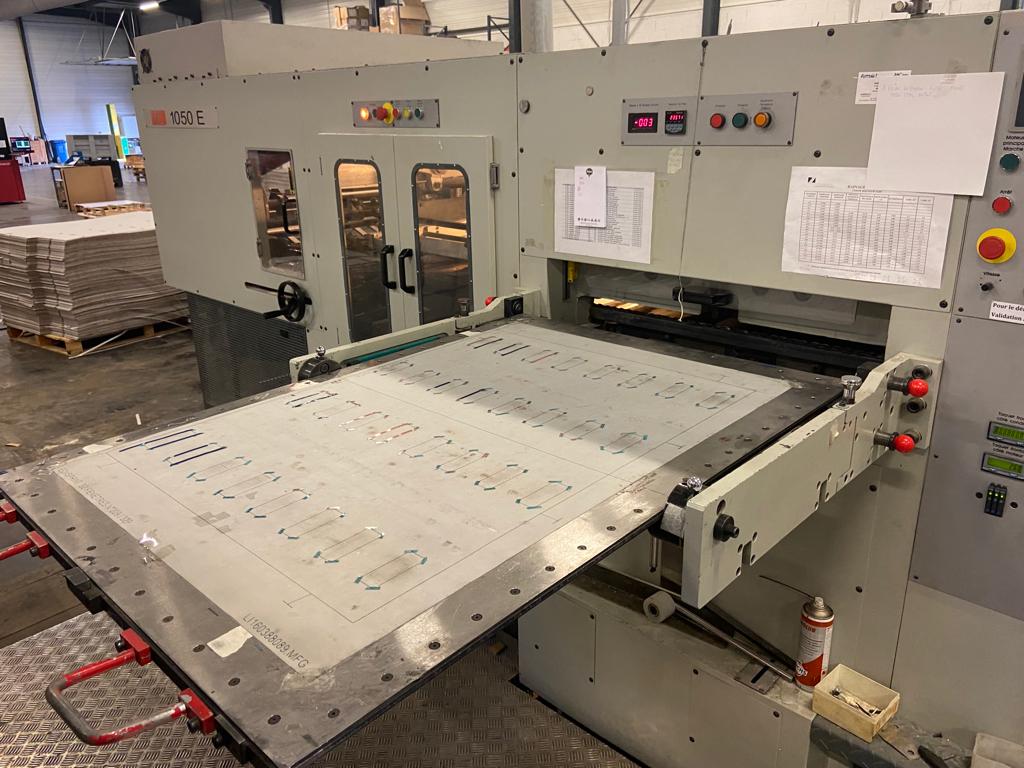

Yawa MD 1050E

Specifications :

Die cutting machine

2001 N°07-12-2 and installed in 2002

Sheet size Maxi 1050 x 750 mm

Mini 450 x 370 mm

Max die cutting area 1040 x 730 mm

Die cutting form size 1120 x 760 mm

Minimum form size 400 x 330 mm

Working stocks 0,1 mm à 3 mm

Maximum speed 7500 feuilles/heure

Minimum gripper edge 8 mm

Tork limitation on gripper bars tansmission

Digital reading of pressure settings

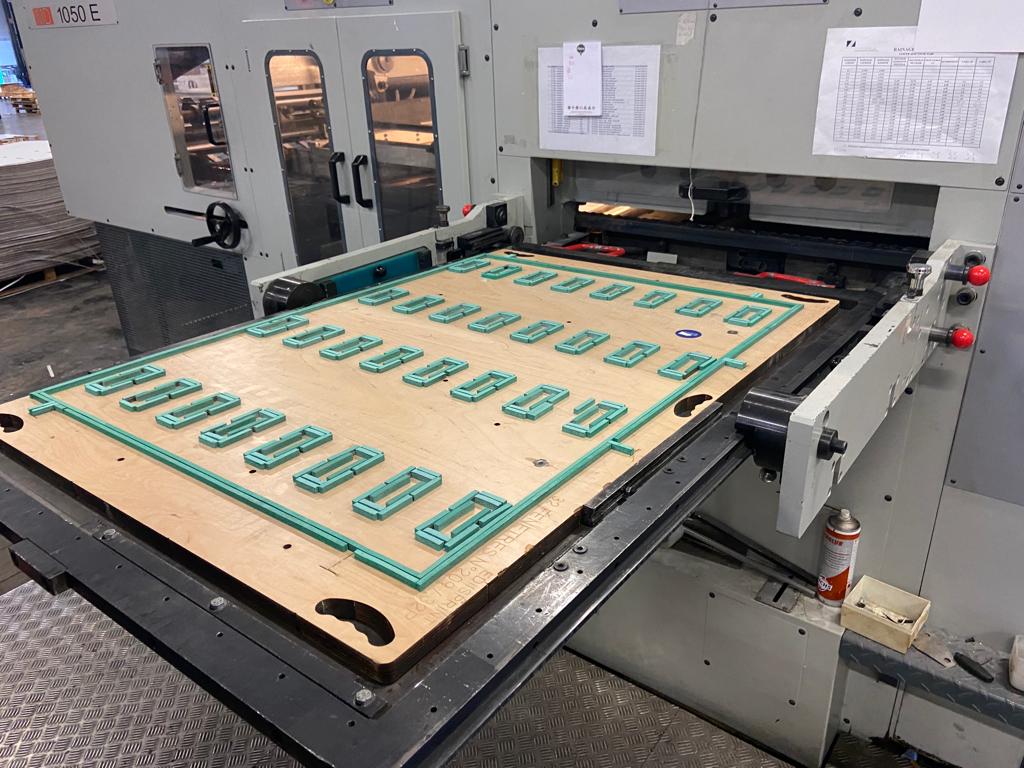

2 form holding chases

Quick lock system for small form

Dual axel centering system

2 -5 mm cutting plate

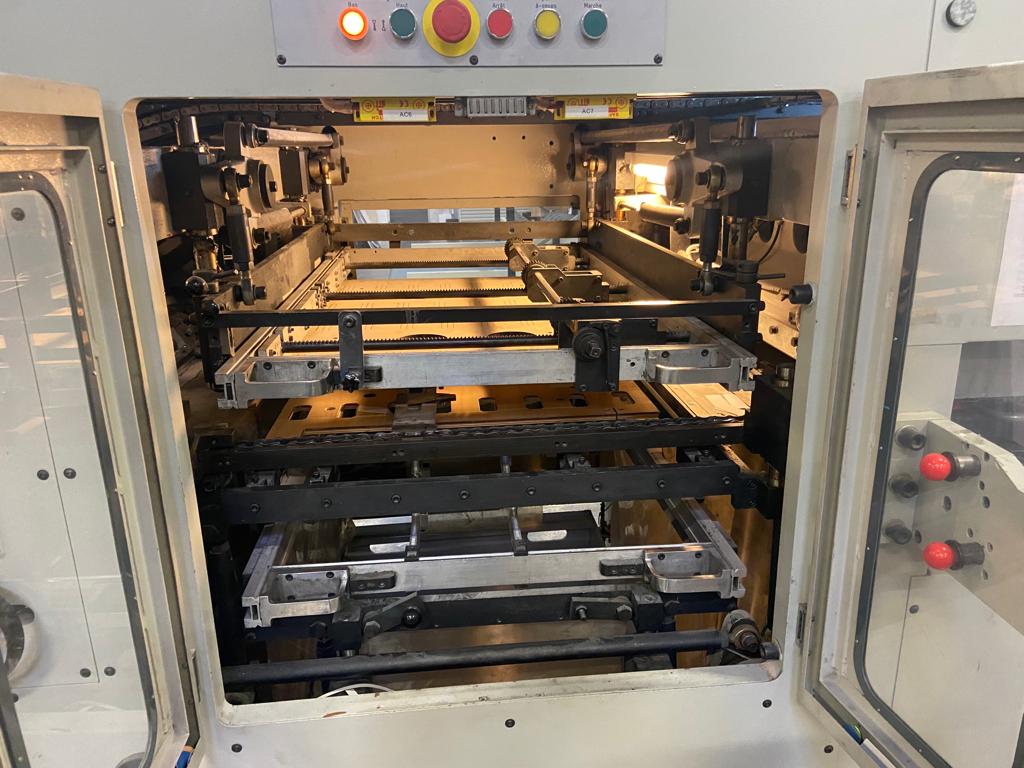

Double action striping

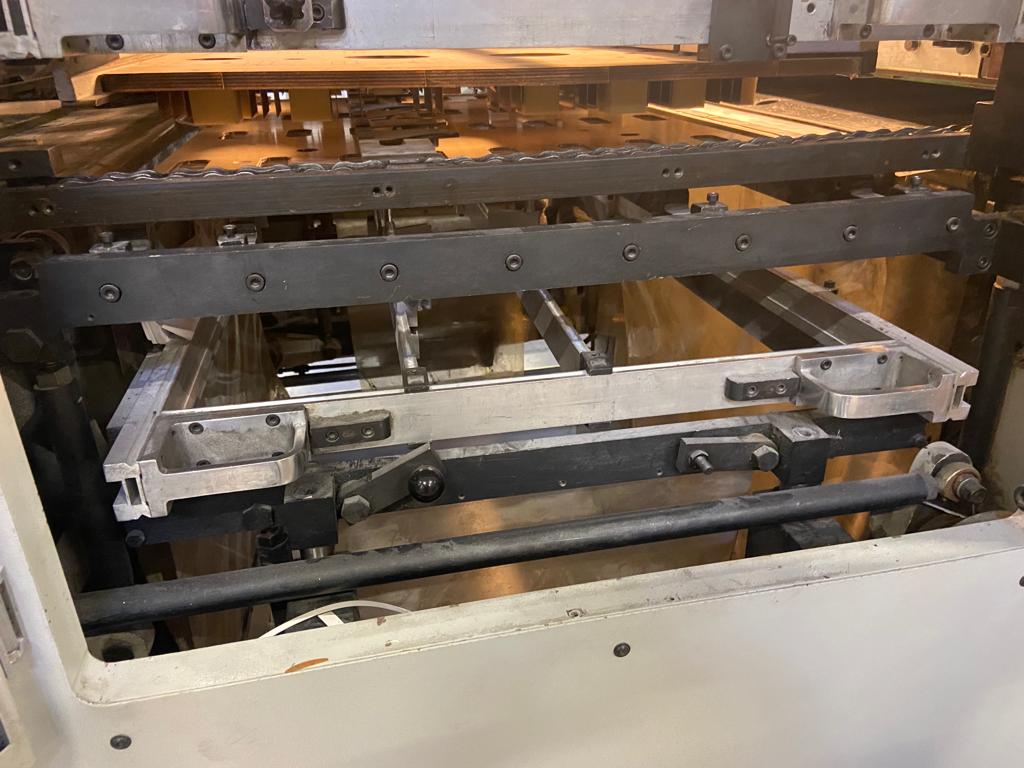

Fast positionning of superior stripping chase with dual axel centering system

Dual axel centering system of stripping chase and board

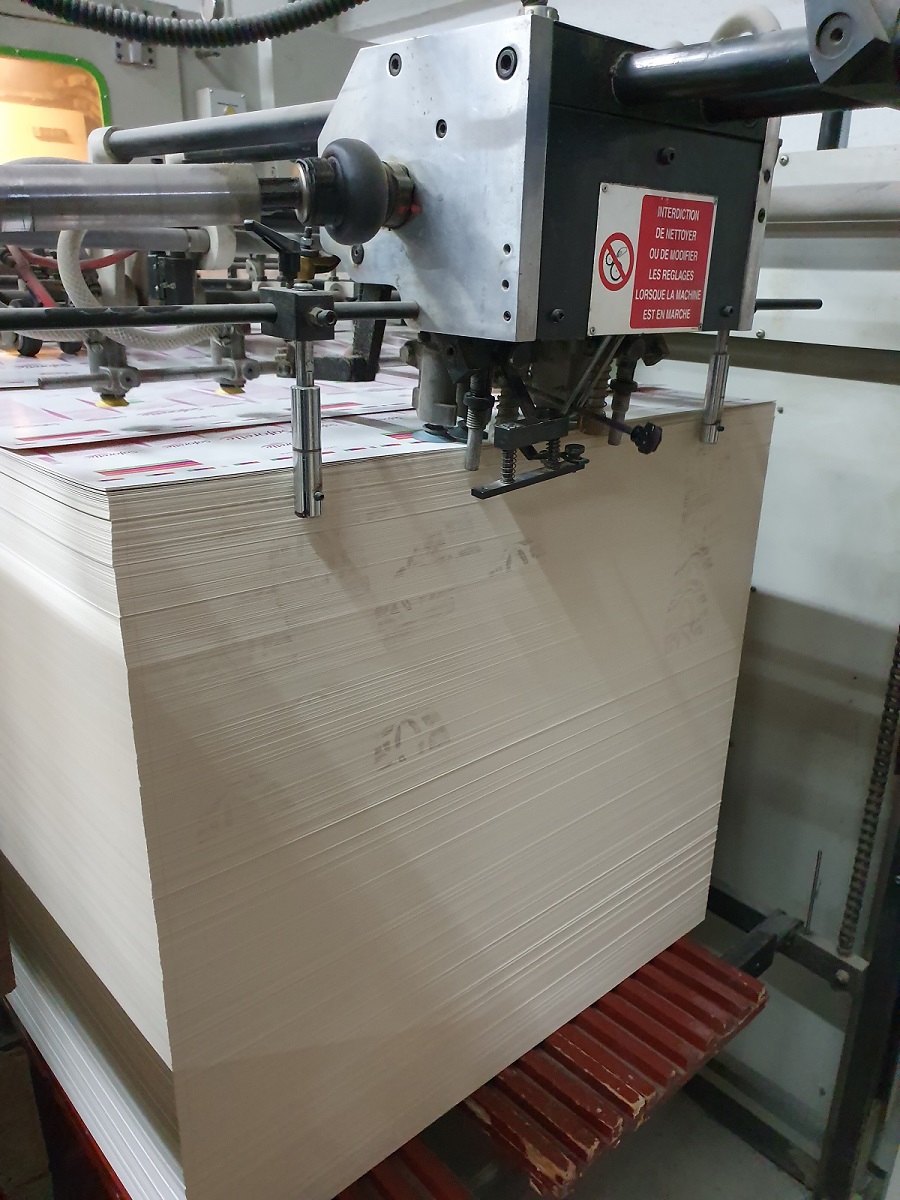

Non stop delivery

Steel loading plate

Hight pile control by mechanical system

Platen angle position control

Touch screen operation control
